22.75' J Boats J/70

Hull & Deck

Hull laminated with biaxial and unidirectional E-glass fabrics and balsa core for rugged durability.
Deck molded with E-glass fabrics and Corecell foam core. High density core material and additional reinforcements in way of highly loaded hardware.
All laminates are engineered and built to required ISO structural standards.
Molded internal bulkheads with gelcoat finish, bonded to the hull and/or deck.
Molded lift-keel structure jigged and integrally molded during primary hull layup.
High strength, inward turning hull to deck joint bonded with structural adhesive.
Molded non-skid on horizontal deck surfaces.

Keel & Rudder

4.75 draft lifting keel with lead ballast featuring an internal leading-edge kelp cutting mechanism operable from the cockpit while underway, SS lock down plate and a single point lifting ring w/2:1 aluminum keel crane lift system.
Investment cast diamond boat lift padeyes installed adjacent to keel P&S.
High aspect transom mounted molded rudder.
Composite tiller with adjustable tiller extension.

Spars & Rigging

Carbon mast with single swept carbon spreaders, carbon masthead crane and mainsail luff track. Easy to raise and lower with deck step design and tabernacle system. Mast finished in satin black with contrasting white bands.
Carbon boom with internal 4:1 outhaul, mainsheet attachment point, outhaul and single reef sheaves as well as provision for reef cleat and block at inboard end. Finished in satin black with contrasting white bands.
Carbon bow sprit with tack ferrule fitting, painted black finish and seal system mounted at sprit housing.
1 x 19 wire standing rigging with adjustable Ronstan turnbuckles for shrouds.
Double ended boom vang system.
Complete running rigging package.

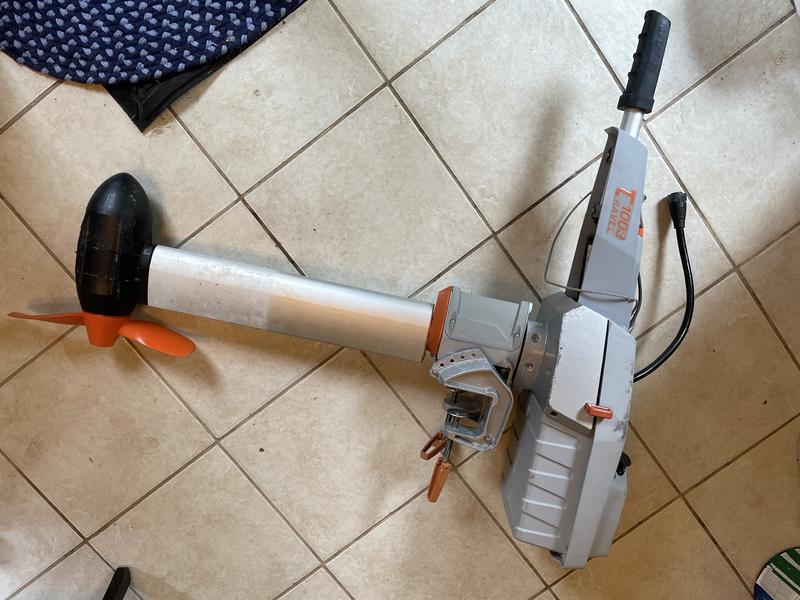

2.5 hp Torqueedo electric motor

North Sails jib and main, class legal. Class approved spinnaker.

Tri-Ad trailer
