Equipment: |
Price: EUR 88.000
Year: 1979
Length: 38' - 11.58m
Beam: 3,50 mtr.
Draft: 1.75 mtr.
Displacement: 8.5 tons
Keel / Ballast: 3700 kg. Iron embedded in keel
Vessel Location: Kuah-Langkawi
Region: Asia, Malaysia Designer: Olle Enderlein, Christoph Rassy
Builder: Hallberg Rassy, Each hull is build to Lloyd´s specifications for "Certificate of Hull Construction.

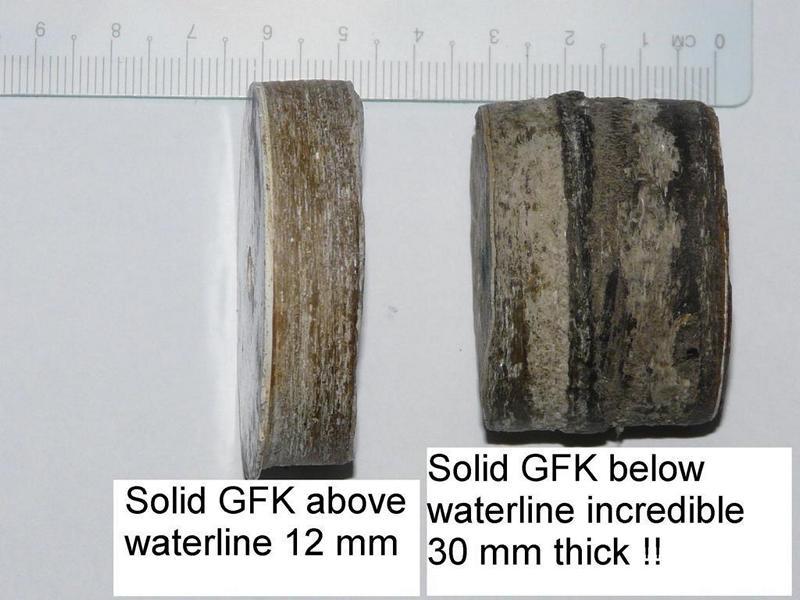

Hull Material: GRP
Decks Material: Teak on GRP

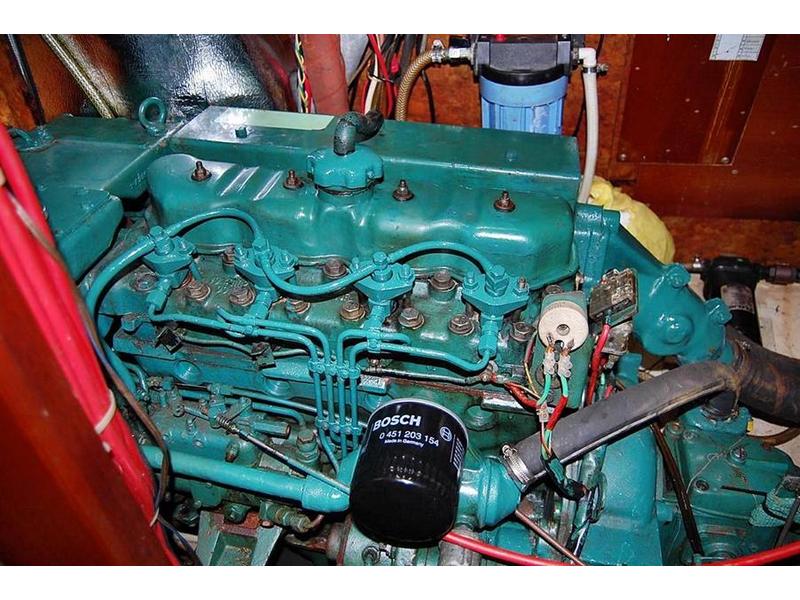

Engine: Volvo Penta MD 21 A, 4 cylinders, 50 hp, 4745 hrs., fresh water cooled with heat exchanger. Runs very smooth! Gearbox: Volvo Penta mechanical, Propellershaft with slip ring seal, fixed Prop 15".
Engine room: Under the centercockpit, very well protected and accessible from above, front and left side.
Genset: portable Honda 1000E Inverter, 1000W
Fuel: 380 ltr. total, 200 ltr. main tank, 140 ltr. reserve tank, 40 ltr. in day-tank

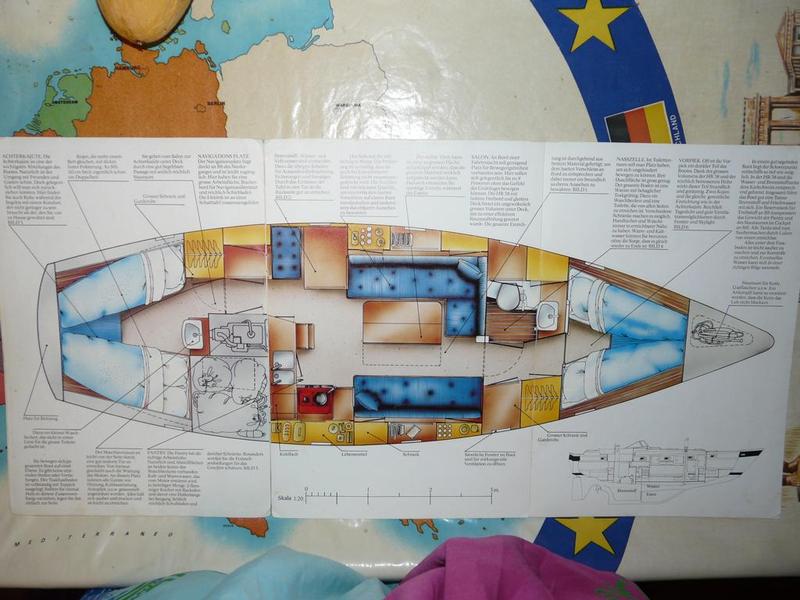

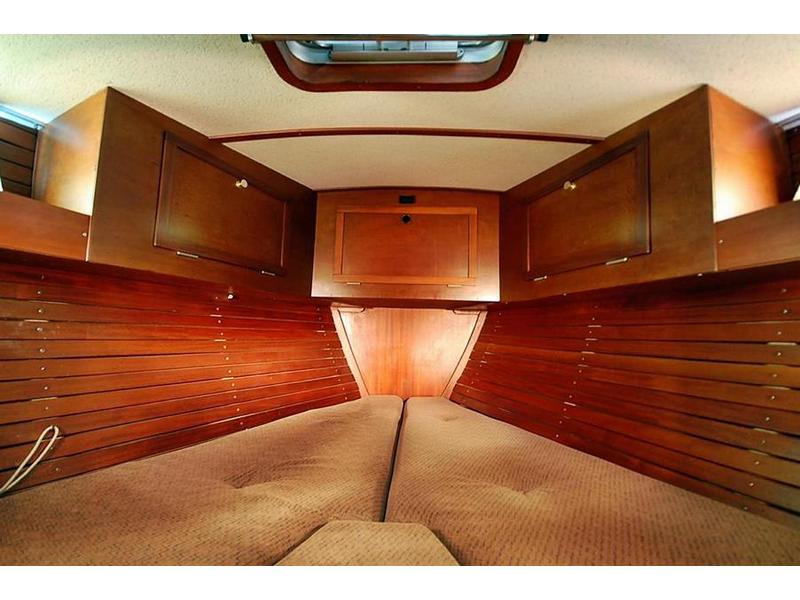

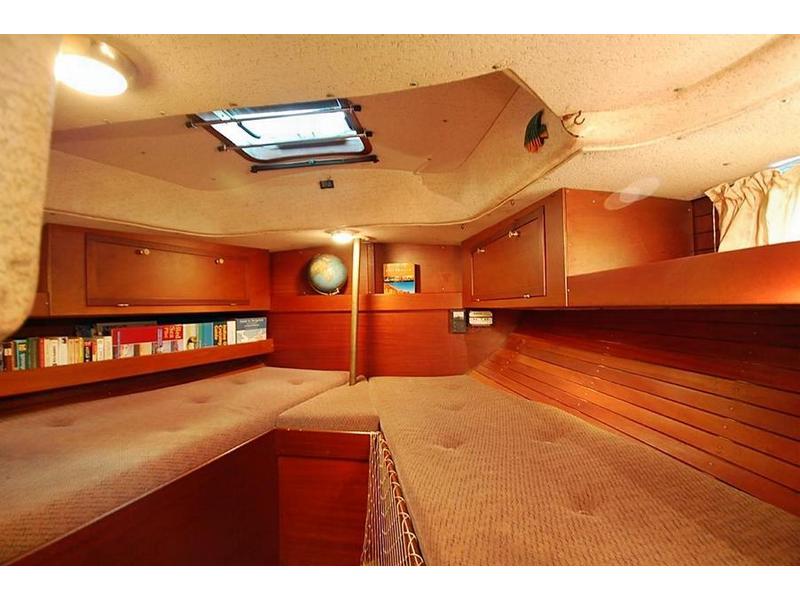

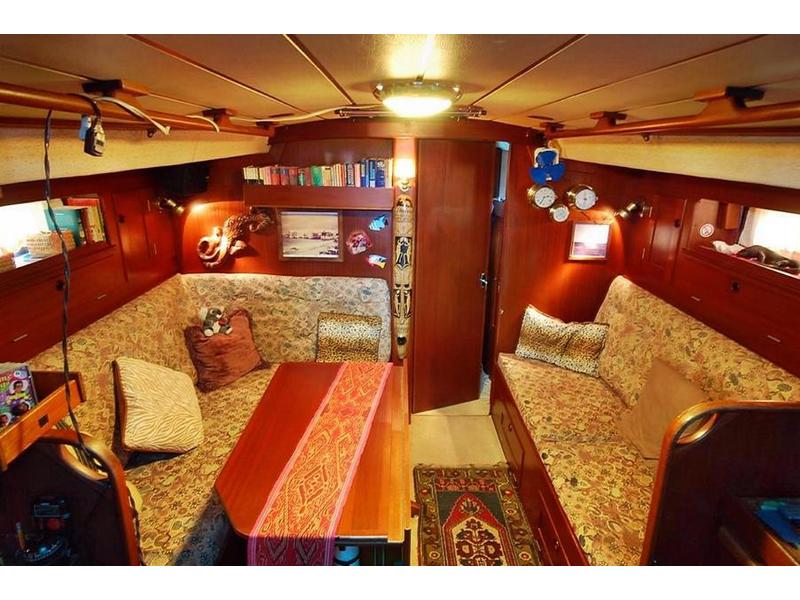

Accomodation: FWD-double cabin, double aft cabin, maybe 2 in saloon, Mahagony wood throughout, floor carpet, many additional lockers and shelvs. Additional illuminations, most LED´s, everywhere.

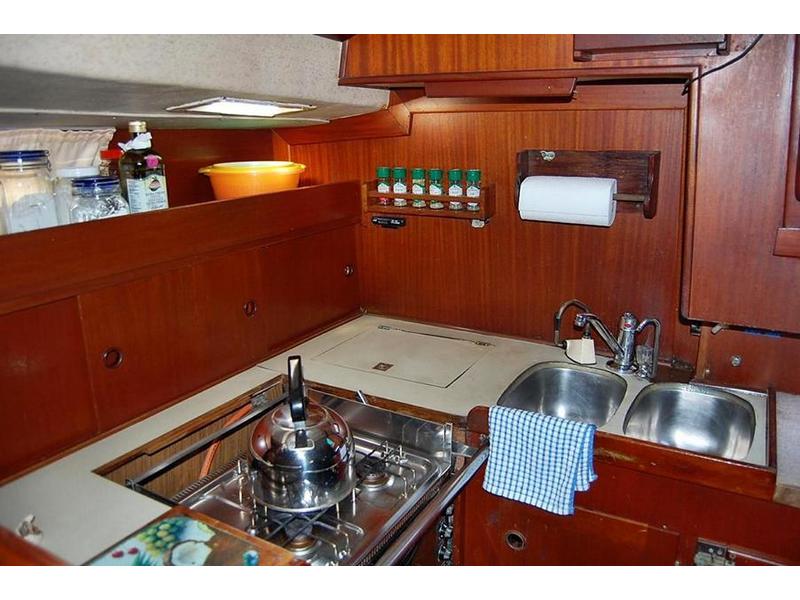

Galley: 3 burner gas oven with grill, double S/S sink with fresh and saltwater, hand or electric operation (pressure system), 2 alu-gas cylinders each 10 kg. Electric-magnetic gas valve for security. Extra tap with carbon-filter for drinking water. PUR 40 E Watermaker 12 V, 5 ltr./hr., incl. many spareparts. (new membrane)
Refrigeration: One big top load box with 2 independent Isotherm evaporatorplate units 12 V, Danfoss compressor. Both are fairly new!
Ground tackle: One German-Bügelanker 25 kg, one Bügelanker 19 kg, one 8 kg folding anchor, 65 mtr. 10mm chain tested, electric Lofrans-Tiger windlass with wireless remote-control for up and down ( best item on the yacht!).
Safety gear: 4 person life raft, lifejackets, 2x EPIRB, flares etc., Signalhorn and more.
Electrics: AC 110V and 220V system transformer, 12 V with 5 house-batteries, 500 Ah, starterbattery 80 Ah, one Pro-Mariner 40 A automatic-charger, one 15 A standard charger for standby. 2 Inverters 12 to 220 V, 150 and 500 W. 12 V waterpressure system microprozessor-controled. 200 W Solarpaneels, Windgenerator. 2 electric bilge pumps with sensor automatic switch. One portable windows aircon to fix on a hatch.

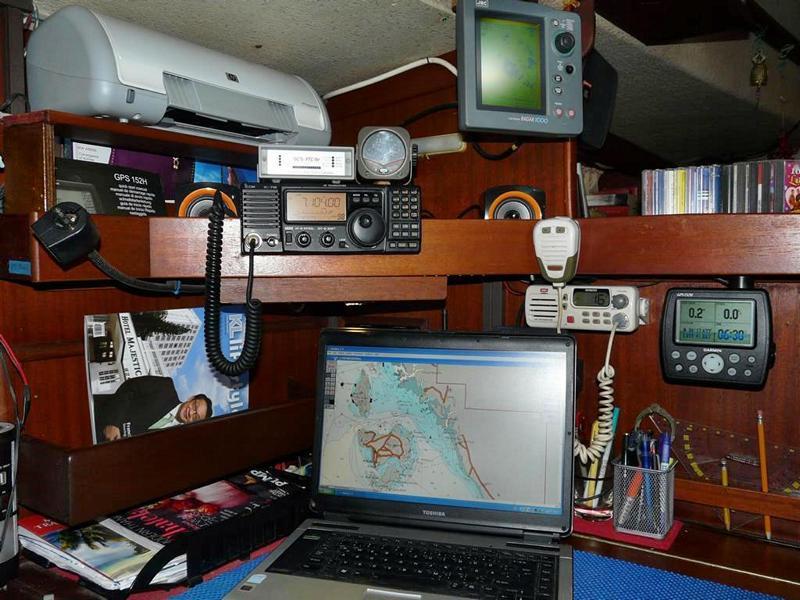

Electronics:
VHF: GME 600 and handheld ICOM IC M 7,
HF: ICOM IC 718, open for Ham and Maritime frequencies with automatic-tuner ICOM AH 3 and isolated aftstag-aerial. Pactor-modem and SWR-meter.
Radar: JRC LCD 1000
GPS: 1xGarmin 120 XL, 1xGarmin 152 H (new); Handheld: Garmin 76, Garmin Etrex mariner.
Autopilot: 1x Autohelm 6000, 1x Tecnautic-System, 2x Navico Wheelpilot 5000.
1x Wind: Standard Horizon WS 150 1x Logge VDO 1x Logge-depthsounder Multi Navman 3100 S 1x forward looking sonar Interphase Probe. 2x EPIRB
Sail Inventory: Doyle-Sails, 120 % Genoa and full batton main with Doyle-Stakpack and lasyjacks. One 150% Genoa, 1 working jib, 1 storm jib (new) 1 Blister with sleeve. Sails are in good condition and special made for the tropics! UV protection! Genoa furling system from Furlex.
Mast-Rigging: Sloop, Alumast and boom from Selden, Rodkick, Wälder boombreak, Spinnakerboom on the mast, Rigging replaced 2006, Maststeps to the top.
Deck gear: S/S swimladder on transom, 7 winches, two of them electric, shower on stern, different cockpit tables, |
